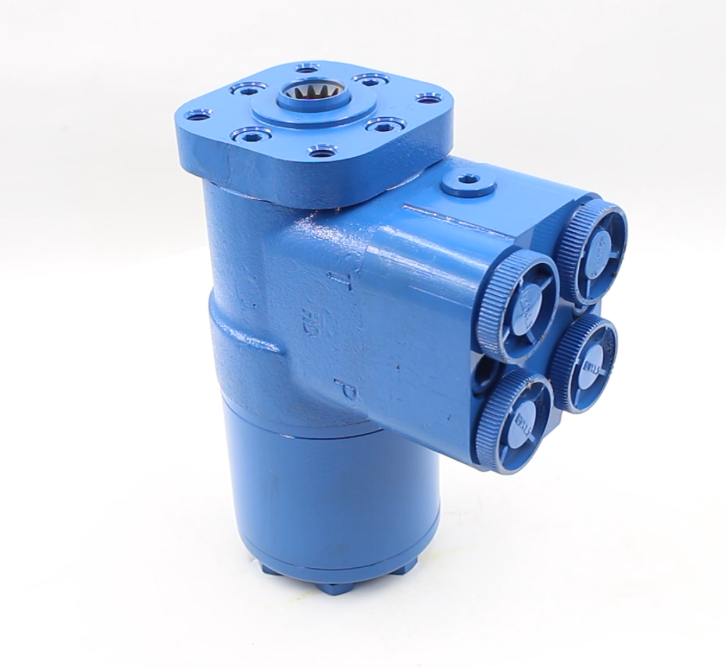

Fully hydraulic steering system

Cycloidal Rotary Valve Fully Hydraulic Steering System | Lightweight, Precise, Safe, Reliable, and Widely Adaptable

Product Overview: This fully hydraulic steering system is a cycloidal rotary valve type, open-heart non-responsive, designed specifically for off-road mobile machinery and heavy vehicles. Eliminating mechanical linkages, it transmits steering power solely through hydraulic pressure, achieving light-force operation, precise follow-up, and stable reliability. Suitable for construction machinery, agricultural machinery, forklifts, special vehicles, and ship steering, it is the ideal steering core for heavy-duty, low-speed equipment.

Core Advantages

Easy and effortless operation: High hydraulic power assist, low steering wheel torque, reducing fatigue during extended operation.

Precise and responsive steering: Sensitive valve distribution ensures precise synchronization between steering wheel angle and wheel deflection, with no lag.

Safe emergency steering: Manual emergency steering is available in case of engine stall or hydraulic failure, ensuring driving safety.

No mechanical linkages: Flexible installation and layout, simplifying the main unit structure and reducing failure rate and maintenance costs.

High-pressure sealing and leak-proof: Multi-stage sealing and precision fit ensure high pressure resistance, back pressure resistance, and long-term leak prevention.

Durable, vibration-resistant, and long service life: Precision cycloidal pair and high-strength housing provide impact and vibration resistance, ensuring stability under harsh operating conditions.

High versatility and easy replacement: Compliant with industry standard interfaces, supporting multiple displacements/flanges/ Optional oil port for easy replacement

Performance Features: Smooth forward and reverse rotation, shock-free, low noise, and stable operation

Adaptable to a wide flow and pressure range, compatible with various hydraulic systems

Strong anti-contamination capability and good adaptability to hydraulic oils

Can be integrated with safety valves, buffer valves, and replenishing valves for a simpler system

Supports priority valve matching, steering priority, ensuring operational safety

Applicable Scenarios: Construction Machinery: Loaders, excavators, road rollers, pavers, cranes

Agricultural Machinery: High-horsepower tractors, combine harvesters, seeders, plant protection machinery

Industrial Vehicles: Forklifts, stackers, pallet trucks, warehousing equipment

Special Vehicles: Aerial work platforms, sweepers, mining machinery, port machinery

Marine/Fishery: Small vessel steering, net lifting machines, winch steering control

Other Equipment: Hydraulic steering systems requiring high steering force and light operation

Specifications (Commonly Used):

Series: BZZ1/BZZ5/BZZ–E/C Full range available

Displacement: 80/100/160/200/250/315/400 ml/r

Rated Pressure: Up to 16–20 MPa

Suitable Flow Rate: 10–60 L/min

Interface: Standard flange, output shaft, and oil port types optional

Quality Assurance

Precision machining and 100% factory testing ensure stable and reliable performance.

High-quality materials and imported seals ensure longer service life.

Supports customized integrated valves, special interfaces, and non-standard sizes.

Factory stock available for fast delivery and professional technical support.
