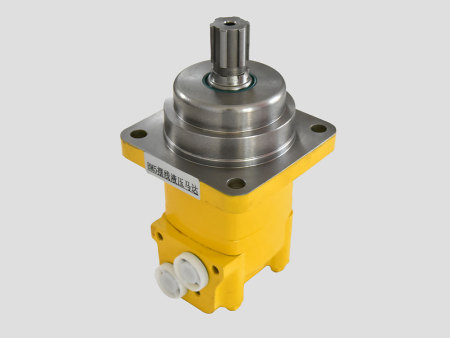

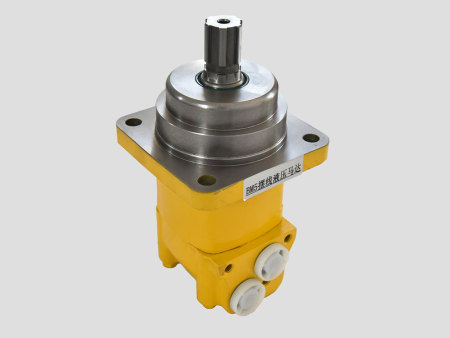

Hydraulic motor for vacuum cleaner | Sweeping vehicle / Floor cleaning machine / Sweeping machine side brush / Main brush / Travel drive Product Overview

This special geared hydraulic motor for vacuum cleaners is specifically designed for sanitation cleaning vehicles, electric sweeping machines, floor scrubbers, and road sweeping machines. It features low-speed stability, uniform rotation speed, moderate torque, low noise, dust resistance, and leak-proof properties. It perfectly suits the rotation of brush discs, main brush drive, walking mechanism, and edge brush elevation, making the cleaning process cleaner and the operation more stable. Core advantage

More even cleaning: Stable rotational speed, continuous torque, no vibration or shaking of the brush, no cleaning blind spots

Lower noise and more comfortable: Silent operation, suitable for urban roads, residential areas, and factory area cleaning operations.

Resistant to dust and dirt: With a sealed and reinforced design, it is not affected by dust, sand, or sewage, and has a more reliable lifespan.

No oil leakage and cleaner: High-pressure wear-resistant oil seal prevents oil leakage from contaminating the ground, making the sanitation vehicle cleaner.

Compact size and easy installation: The structure is compact, the installation space is small, and it directly fits various floor cleaning machine chassis.

High sensitivity for forward and reverse movements: Smooth start and stop without shock, protecting the brush and mechanism, resulting in a lower failure rate.

Performance Characteristics

Low starting pressure, fast response, high operational efficiency

High anti-pollution capacity and not demanding in terms of hydraulic oil requirements

Can operate continuously for a long time and is suitable for high-intensity cleaning operations.

Standard interface, easy to replace, low maintenance cost

The applicable temperature range is wide, and it can be used in both the north and the south.

Applicable parts

Sweeping machine side plate brush / edge brush drive

Vacuum cleaner - Main brush drive

Sweeping vehicle, traveling motor

Hydraulic drive for the brush pan of the floor scrubber / street sweeper

Common Specifications (General)

Displacement: 50–160 ml/r

Rated Pressure: 10–16 MPa

Speed: 50–400 r/min

Applicable: 3-ton / 5-ton / 8-ton sweeping vehicles, electric sweeping machines, sanitation vehicles Quality Assurance

Specialized in optimizing the working conditions of vacuum cleaners

Full inspection before leaving the factory. No oil leakage, no abnormal sounds.

Durable and long-lasting, reducing the need for frequent replacements

Direct supply from the manufacturer, stable stock availability, no worries about compatibility.
